Ion Nitriding and Ion FNC

Surface is your experienced source for ion technologies
using our reliable furnace products

Surface® Combustion offers a wide range of standard and custom designed ion (plasma) nitriding furnaces for batch processing of parts.

With our diversity of atmosphere and ion nitriding capabilities and companion equipment and controls, Surface provides the best technology suited for each specific processing requirement

Ion Nitriding

Ideal for extended life parts that benefit from this high precision nitriding process

Nitriding is a case hardening process that adds nitrogen to the surface of ferrous materials. A thin, uniform hard surface layer, known as the compound layer or white layer develops.

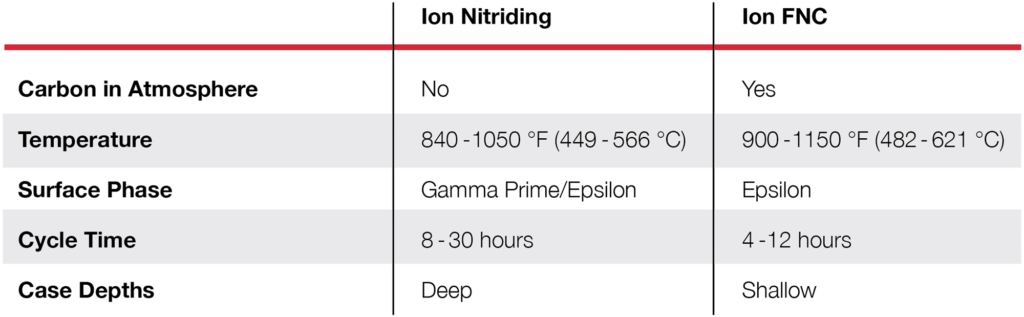

Ion Characteristics:

Product Options

Horizontal Furnace

Lab Size Furnace



Ion Furnaces

Surface Solution:

The ion process is an alternative to the gas nitriding process that uses a vacuum environment along with high-voltage electrical energy in the form of plasma to accelerate nitrogen ions to impinge the surface of the work piece. This ion bombardment acts as primary or secondary heat source, cleans the surface, and provides nitrogen to the surface.

Surface Combustion originally licensed technology utilizing DC power supplies and now offers a pulse power AC solutions with arc detection. The key differences between conventional gas and ion nitriding is the electrical energy used to generate nascent nitrogen at the surface of the work being processed and that no ammonia is required.

Surface has installed ion nitriding furnaces globallyand offers a wide range of designs and companion equipment for the following processes:

  • Epsilon White Layer
  • Gamma Prime White Layer
  • No White Layer

Generally, ion nitriding can be performed anywhere conventional gas nitriding is used in a batch furnace configuration. Surface offers a wide array of furnace designs in either vertical or horizontal and can be added to any machining cell due to the cold wall assembly. We offer the nitriding furnace in several other configurations alongside ion nitriding furnace such as an electric retort pit nitriding furnace.

Surface Equipment Product Benefits:

Fuel Used: Electric

Ammonia Used: No

Temperature Range: 840-1050 °F (449-566 °C)

Load Size: 3,000 to 20,000 lbs (1,360 to 9,071 kg)

Repeatable Process: High repeatability

Floor Space: Cold walled, can be in machining area

Surface has the capability to test the process and optimize the results to verify the outcome. Our lab is used to create the recipe neededfor the best product results. A recipe is developed for every furnace installation.

Why Nitriding?

Nitriding is performed at a lower temperature and does not require quenching which minimizes distortion, does not affect core hardness, and allows for a final part shape with no post-machining.

The nitriding process provides excellent surface hardness without introducing distortion. Wear and galling resistance are increased while corrosion resistance is also enhanced. Workpieces in this process tend to have higher fatigue strength.



Applications:

Aerospace

Engine Components

Exhaust Components

Fasteners

Fuel Lines/Components

Hydraulic Components

Landing Gears

Structural/Wing/Flap

Agriculture

Agriculture

Blades

Cutters

Tooling

Aluminum

Extrusion Dies

Drawing Dies

High Pressure Die Casting

(HPDC) Dies

Armaments

Breech Blocks

Cannon Barrels

Rifle Barrels

Automotive and Truck Industries

Engine
(Gasoline & Diesel)

Barrels

Cylinder Bushings

End Plates

Fuel Injectors

Gears

Lifters

Nozzles

Shafts

Timing Chains

Valves

Bodies and Assembly

Ball Studs

Bumper Molds

Hot Forging Dies

Razor Blades

Driveline
(Gasoline & Diesel)

Axles

Bearings

Gears

Rotors

Shafts

Synchronizers

Coating and Cutting Industry

Bit Holders

Blade Holders

Doctor Blades

Razor Blades

Saw Blades (Bi-Metal)

Saw Blades (Single Metal)

Energy

Compressors

Rings

Valves

Valve Seats

Plastics Industry

Barrels

Check Valves

End Plates

Molds

Nozzles

Pins

Screws

Sleeves

Textile Industry

Broaches

Guides

Rollers

Rolls

Wear Plates

Tool Industry

Drills

Hobs

Mills

Punches

Reamers

Taps

Surface Knowledge of Product and Process Supports Your Solution

Surface’s extensive line of furnaces includes relevant companion equipment to ensure the nitriding line installation process is complete. Equipment and Furnace Control Systems are developed based on your application needs.

Companion Equipment

Surface offers a full line of companion equipment for the controlled atmosphere nitriding furnace:

  • Forced Atmosphere Cooling Systems
  • Loading Cars for Horizontal Configurations
  • Supervisory Computer Control Systems

Furnace Control System

The Multi-Zone Electric Heating system is included in each furnace system.
All nitriding furnace configurations can be provided with control of the nitriding potential (Kn).
This system consists of:

  • Online Material Databases
  • Process Calculators
  • Control of Furnace Pressure
  • Temperature Control

Atmosphere probes for online continuous control of:

  • Nitriding Potential
  • Nitrocarburizing Potential
  • Oxidation Potential
  • Disassociation Rate

Additional Benefits:

  • Mass flow controls for precise control of flow rates
  • Available control system for furnace temperature, load temperature, furnace pressure, gas mixing composition, and power supply
